DEK VectorGuard™ frame solutions

Invest in one frame, use multiple foils

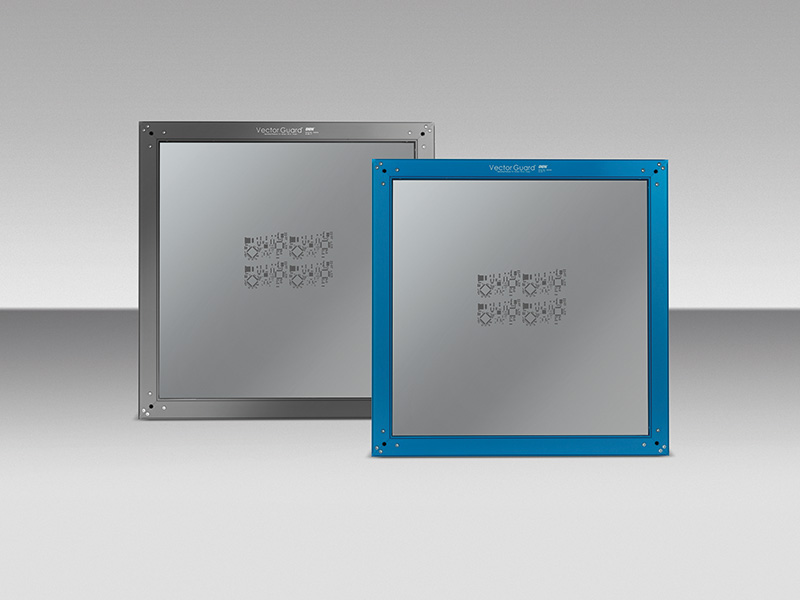

DEK VectorGuard™ frame system allows assembly specialists to use a single frame to accommodate multiple stencil foils for different products. Foils are loaded into the frame using air pressure, then DEK VectorGuard™’s unique tensioning system engages to hold the foil securely in place. Available in a classic and high tension version, DEK VectorGuard™ is ideal for fast changeover and manufacturing flexibility.Benefits:Space-efficient foil storage; 75% space savings vs. conventional framed stencilsFast changeover in secondsA single frame accommodates multiple foilsBroad compatibility with all current printer brandsDEK VectorGuard™ Classic frame:Well-suited for standard SMT processes that don’t include ultra-fine-pitch, highly miniaturized dimensionsCost-effective, versatileDEK VectorGuard™ High Tension frame:45% – 65% greater tension than traditional mesh-mounted frames and more tension than DEK VectorGuard™ Classic framesDesigned for printing ultra-fine-pitch, miniaturized dimensionsProvides extreme solder paste definition with superior transfer efficiency

DEK VectorGuard™

DEK VectoGuard Frame Re Tubing Kit X 10 Kits

DEK VectoGuard Frame Re Tubing Kit X 1 Kit

DEK VectoGuard Stencil frame system Level 2 service tool kit

DEK VectoGuard Stencil frame system Level 1 service tool kit

DEK VectorGuard™ tower cabinet

DEK VectorGuard™ cabinet

DEK screens storage system

DEK VectorGuard™ mobile cabinet

DEK VectorGuard™

DEK VectorGuard™ working station
